Geospatial applications provide customers with enhanced visualisation and data insight
Spatial insight company, Cadcorp has made substantial updates to its GIS software SIS 9.1. It brings a host of optimisations, enhancements and features to Cadcorp SIS Desktop and Cadcorp SIS WebMap. This includes new process operations for crime analysis, additional provision for what3words addresses, support for recently released Ordnance Survey® National Geographic Database (OS NGD) feature types, and further functionality in the Cadcorp Call for Sites and Cadcorp FindIT applications.
Spatial analysis operations for crime analysis
A range of new process operations and spatial statistics tools for identifying and analysing patterns and trends in crime data have been added to SIS Desktop.
‘Spatial Mean’ calculates the geographic centre of a set of points, for example, locations of crime. This includes a ‘Weighted Spatial Mean’ option, enabling analysts to target specific incident types.
New ‘Count and Classify’ options include ‘along linear network’ to assign an incident to the nearest part of the road network, and ‘along individual linestrings’ to count incidents within a defined distance.
‘Nearest Neighbour Index’ counts a set of data points, from items or from within polygons, and determines if these points are randomly distributed or spatially clustered.
For resource and intervention targeting, ‘Location Quotient’ can be used to analyse incidents, eg crimes, relative to population size. This is useful for identifying which locations have a higher or lower than average crime rate. The ‘Density-based spatial clustering of applications with noise’ (DBSCAN) algorithm is also included, enabling analysts to create a cluster point, set a cluster label property, and cluster items.
Additional routing options have been added to allow users to select a set of start points and a ‘cost’, in time or length. From each of these points, an isochrone is created, showing how far a vehicle can travel using the road network.
Latest OS NGD feature types supported

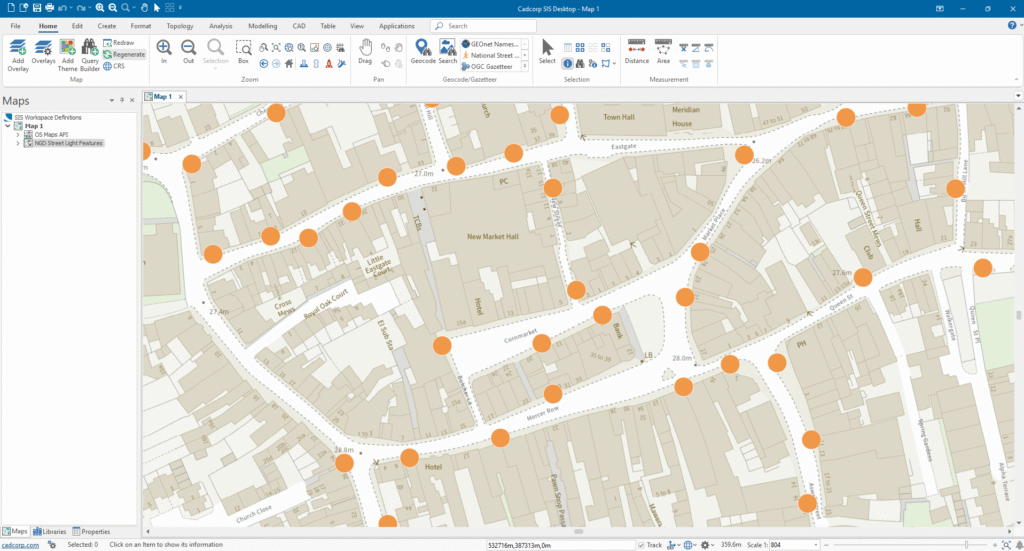

Cadcorp is an Ordnance Survey Premium Partner and continues to provide in-software support for the latest OS NGD data enhancements. This includes the new Building Access Location, Crowd Sourced Name Point, and Street Light feature types released in March 2025.
what3words integration in SIS Desktop
SIS Desktop search now supports what3words. Once a customer has added their what3words API key, they can search a what3words address or click on the map to learn the what3words address for that location.
In addition to standard search, a range of further options have been added including what3words cursor-tracking displayed in the status bar. To support analysts, what3words addresses can be bulk geocoded, and a grid reference expression can return the what3words address as a dynamic attribute. what3words has also been added to ‘View Geometry’, allowing users to take, for example, a spreadsheet or database table containing what3words addresses and display the locations in SIS Desktop as a map overlay.
SIS WebMap enhances visualisations for planning
Updates have been made to SIS WebMap applications to further support the planning process. The reporting functionality of Call for Sites, a digital site submission application, has been enhanced. As well as a single-page report, it provides the option to generate results into a summary report, with a map displaying the search item, its surrounding area, and site information.
FindIT, a versatile planning constraints tool, has been enhanced so that results can be condensed and more clearly displayed. Users can also zoom in on each individual feature and result for a more detailed view.
Additionally, Cadcorp has also created a library of visual standards based on the UK’s Ministry of Housing, Communities and Local Government’s guide ‘How to present your policies map’. Cadcorp customers can download the library from the Cadcorp Community.
The service release also incorporates bug fixes, software updates and performance enhancements to make the user and administrator experience smoother and more efficient. For the Release Notes and to download the latest version, please visit the Downloads page.
